Quick Detail:
Â
Material : PP or PE,polyester, polypropylene
Micron rating : 0.5um ~800um
Good anti-abrasion
High temperature grade
Anti-acid ,anti-alkali, chemical resistance
High porosity ,good air permeability
Laminated compound,grads counterchange
Â

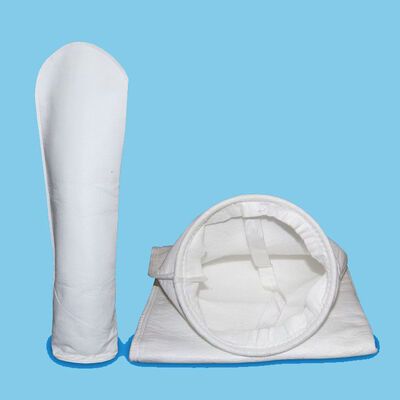

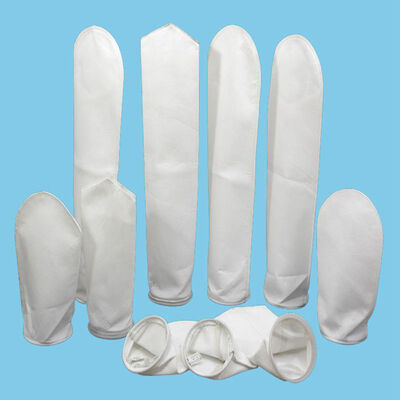

Parameter of PP Liquid filter bag
Â
Specifications:
1. Material:PP non-wowen Felt.
2. 100 micron or as your request.
3. With straw string.
4. Use for powder or air filter .
5. size, shape, packing can be customized.
Â
#1-----(7"x16") -----¢180*410mm
Â
#2-----(7" x 32") -----¢180*810mm
Â
#3-----(4"x 8 1/4") -----¢102*210mm
Â
#4-----(4"x 14") -----¢102*356mm
Â
Â
| Material | PE,PP,NMO,PTFE |
| Cuff | PP Lock, Stainless steel |
| Relative filtration pore size | 0.5, 1,5, 10, 25, 50, 100, 200 µm |
| Type | various specifications |
| Airtight method: | Hot Melt, reverse sewing |
| Effective filtration area | various specifications |
| Others | special requirement of diameter and collar extension can be customized |
Â
|
PRODUCTÂ CODE: |
|||
|
Component |
Elongation@50N/5cm |
||
|
Fibre |
100%PP |
Longitudinal(%) |
Transverse(%) |
|
Scrim |
100%PP |
<3% |
<3% |
|
Weight(g/m²) |
500 |
Operating Temperatures |
|
|
Thickness(mm) |
2.0 |
Continuous(°C) |
Surge(°C) |
|
Density(g/cm3) |
0.25 |
130 |
150 |
|
Mean Air Permeability |
150-250 |
Max Dry Shrinkage in 90 minutes:(150°C)(%) |
<1% |
|
Breaking Strength |
Surface Treatment |
Heat Setting,  Singed, |
|
|
Longitudinal(N) |
Transverse(N) |
||
|
>1000 |
>1200 |
||
Â
Â
Notices:
Â
1. Materials avaliable: polyester, polypropylene
2. construction: welded or sewn
3. collar type: steel ring or plastic ring
4. finishing treatment: singed, calendared, heat set
5. Size available: standard and custom size.
Â
Application fields:
Â
1) The fume and smoke treatment and particle removing system in metallurgy plant, alloy plant, steel works, moulding factories, fire-retardant factories and power stations
Â
 2) Fume filtration, tiny particle recycle and division of liquid and solid in aluminum electro analysis, tin, zinc, cooper and other rare metals
Â
3) Smoke filtration in garbage burning, coal-feed boiler and liquidized laid boilers
Â
4) Division of liquid, solid and tiny particle recycle in chemicals, coke, carbon, dyestuff, pharmacy and plastics
Â
5) Asphalt concrete mixture, cements, ceramics, building materials, lime and plaster
Â
6) Dust treatment, purification and collection in electronics, mining, foodstuff processing, flour and timber processing.
RIQI (HANGZHOU ) FILTER TECHNOLOGY CO.,LTD . has grown up to be one of leading manufacturer on dust filtration&spare parts in China.We have imported filter needle felt production line ASSELIN from France and we can produce very good quality non-woven products according customer's requirment.
Â
Based on 8 needle felt production line ,our annual production ability can achieved 20,000 square meters per day . We can produce a large range of various filter fabric, such as polyester filter fabric, Acrylic filter fabric, Fiberglass filter fabric, PPS filter fabric, Nomex ,P84 ,PTFE ,woven filter fabric and so on.
Â
The most important thing is that we introduced German high technology to develop the first filter bag production line in China. Which help most filter bag production factory save a lot of human lab our cost but promote the work effection . The advanced technology and simple operation way of automatic filter bag production line has won a lot of customer's praise.
